LED Lighting System : LED Panel Series - Surface



Features & Technical Specifications

  • 88% energy saving
  • Instant start
  • No flicking
  • No humming
  • No RF interference
Model →
Points ↓

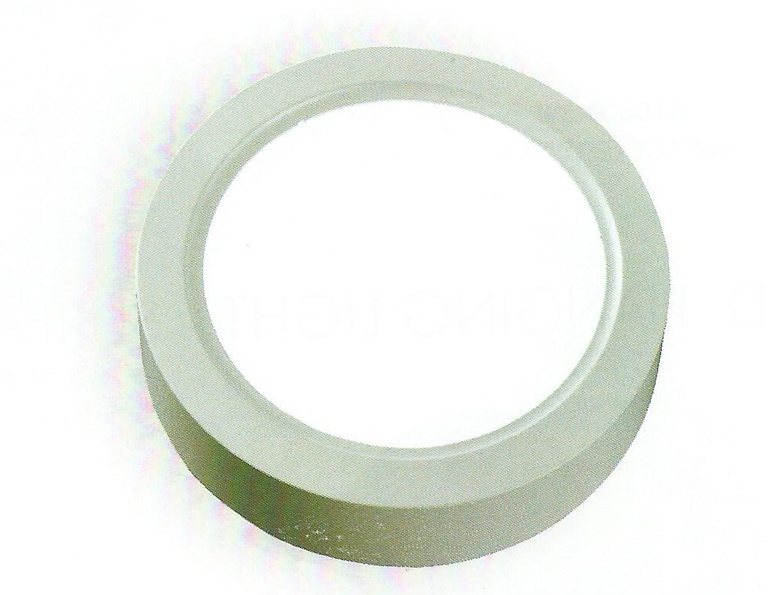

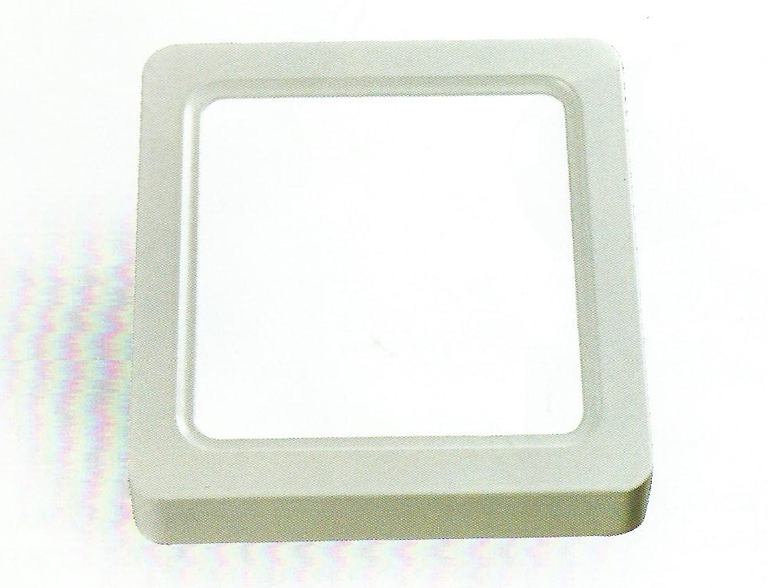

ASPS-8w ASPS-15w ASPS-22w ASPR-8w ASPR-15w ASPR-22w
Watt 8 W 15 W 22 W 8 W 15 W 22 W
Input Voltage AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz
Lumen 800 LM 1500 LM 2200 LM 800 LM 1500 LM 2200 LM
CRI ≥ 80 ≥ 80 ≥ 80 ≥ 80 ≥ 80 ≥ 80
Body Material Aluminium Aluminium Aluminium Aluminium Aluminium Aluminium
Operating Temperature in Celsius < 45° C < 45° C < 45° C < 45° C < 45° C < 45° C
Light Angle in Deg 120 ° 120 ° 120 ° 120 ° 120 ° 120 °
Led Life (Hours) 50000 HR 50000 HR 50000 HR 50000 HR 50000 HR 50000 HR
Driver Efficiency ≥ 0.85 ≥ 0.85 ≥ 0.85 ≥ 0.85 ≥ 0.85 ≥ 0.85
Fitting Dimenssions in MM Φ 115 * 115 * 45 mm Φ 175 * 175 * 45 mm Φ 235 * 235 * 45 mm Φ 115 * 45 mm Φ 175 * 45 mm Φ 235 * 45 mm
Cutting Size in MM - - - - - -
Color Temperature WH/WW WH/WW WH/WW WH/WW WH/WW WH/WW

NOTE: WH = Cool white 6000K, WW = Warm white 3000 K, NW = Natural white 4000 K
All fixtures are including drivers (Constant current, non dimmable)

Due to constant upgrades company reserves the right to change the models / size / specification, etc without prior notice.
