LED Lighting System : LED Panel Series - Recessed



Features & Technical Specifications

  • 88% energy saving
  • Instant start
  • No flicking
  • No humming
  • No RF interference
Model →
Points ↓

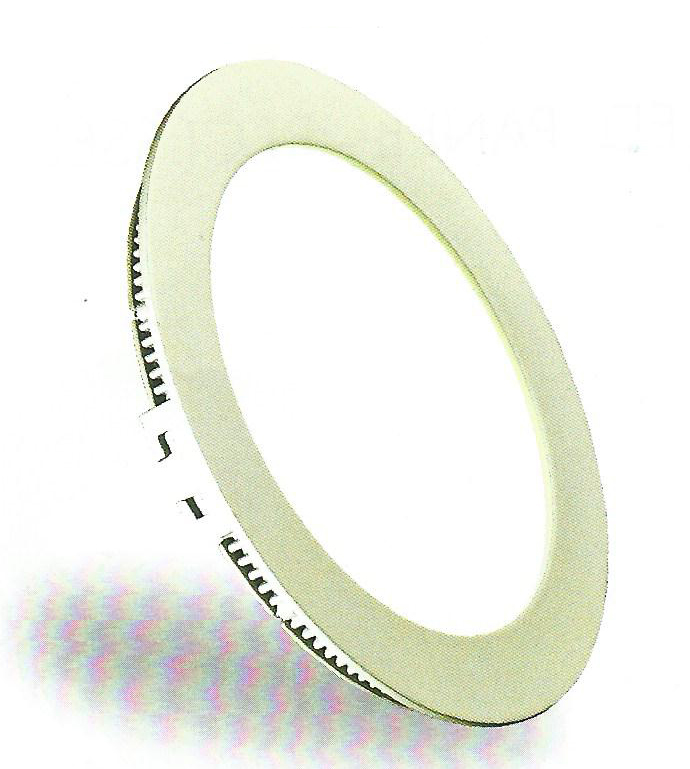

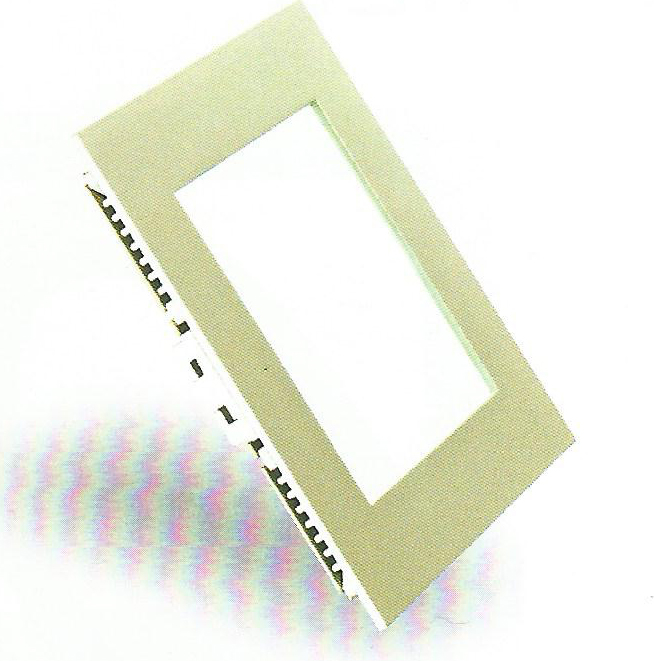

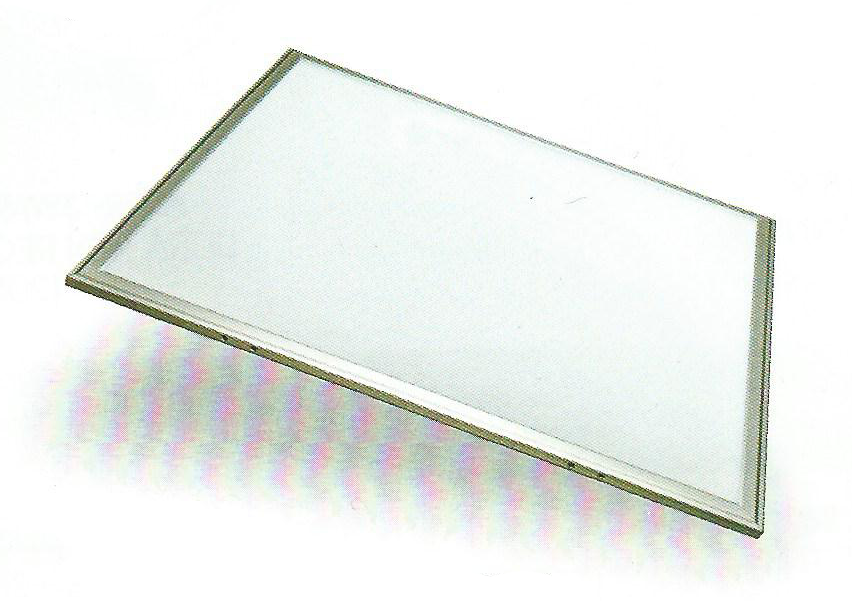

APS-8w APS-15w APS-22w APR-8w APR-15w APS-40w
Watt 8 W 15 W 22 W 8 W 15 W 40 W
Input Voltage AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz
Lumen 900 LM 1600 LM 2400 LM 900 LM 1650 LM 4000 LM
CRI ≥ 80 ≥ 80 ≥ 80 ≥ 80 ≥ 80 ≥ 80
Body Material Aluminium Aluminium Aluminium Aluminium Aluminium Aluminium
Operating Temperature in Celsius < 45° C < 45° C < 45° C < 45° C < 45° C < 45° C
Light Angle in Deg 120 ° 120 ° 120 ° 120 ° 120 ° 150 °
Led Life (Hours) 50000 HR 50000 HR 50000 HR 50000 HR 50000 HR 50000 HR
Driver Efficiency ≥ 0.95 ≥ 0.95 ≥ 0.95 ≥ 0.95 ≥ 0.95 ≥ 0.95
Fitting Dimenssions in MM 110 * 110 * 90 mm 160 * 160 * 160 mm 240 * 240 * 18 mm Φ 120 mm Φ 180 mm 595 * 595 mm
Cutting Size in MM 90 * 90 mm 140 * 140 mm 220 * 220 mm Φ 105 mm Φ 160 mm 595 * 595 mm
Color Temperature WH/WW WH/WW WH/WW WH/WW WH/WW WH/NW 4000k

NOTE: WH = Cool white 6000K, WW = Warm white 3000 K, NW = Natural white 4000 K
All fixtures are including drivers (Constant current, non dimmable)

Due to constant upgrades company reserves the right to change the models / size / specification, etc without prior notice.
