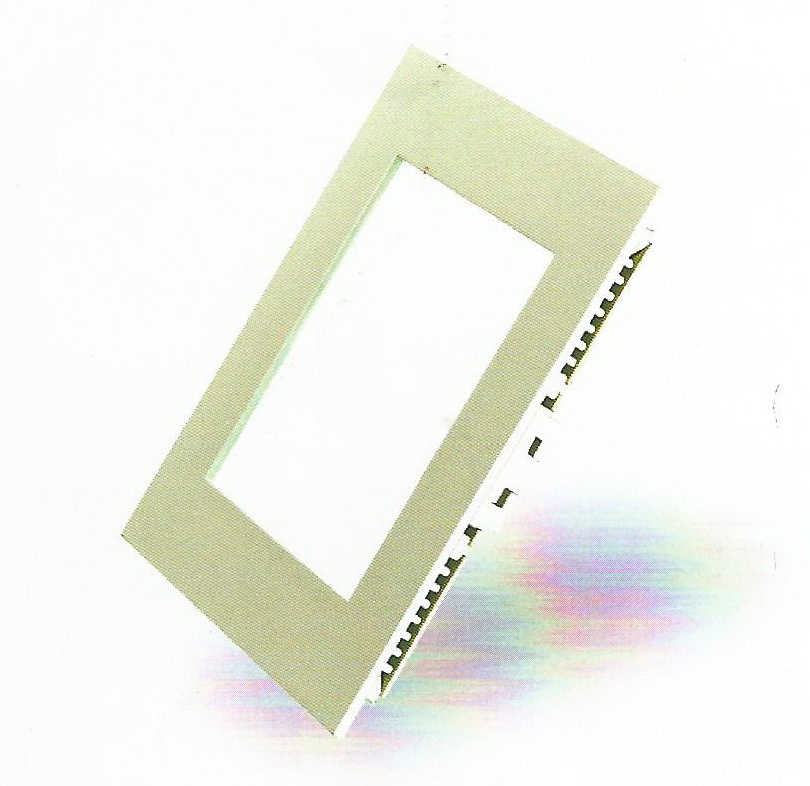

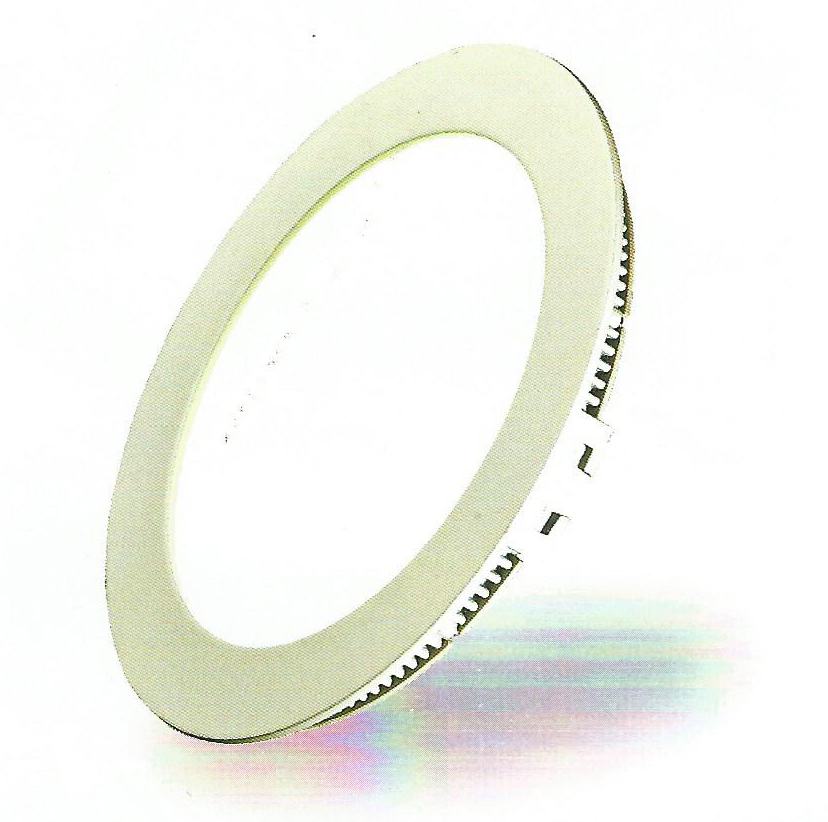

LED Lighting System : LED Panel Eco Series - Recessed



Features & Technical Specifications

  • 88% energy saving
  • Instant start
  • No flicking
  • No humming
  • No RF interference
Model →
Points ↓
AEPS-3w AEPS-6w AEPS-12w AEPS-18w AEPR-3w AEPR-6w AEPR-12w AEPR-18w
Watt 3 W 6 W 12 W 18 W 3 W 6 W 12 W 18 W
Input Voltage AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz
Lumen 270-300 LM 540-600 LM 1080-1200 LM 1620-1800 LM 270-300 LM 540-600 LM 1080-1200 LM 1620-1800 LM
CRI ≥ 80 ≥ 80 ≥ 80 ≥ 80 ≥ 80 ≥ 80 ≥ 80 ≥ 80
Body Material Aluminium Aluminium Aluminium Aluminium Aluminium Aluminium Aluminium Aluminium
Operating Temperature in Celsius < 45° C < 45° C < 45° C < 45° C < 45° C < 45° C < 45° C < 45° C
Light Angle in Deg 120 ° 120 ° 120 ° 120 ° 120 ° 120 ° 120 ° 120 °
Led Life (Hours) 40000 HR 40000 HR 40000 HR 40000 HR 40000 HR 40000 HR 40000 HR 40000 HR
Driver Efficiency ≥ 0.85 ≥ 0.85 ≥ 0.85 ≥ 0.85 ≥ 0.85 ≥ 0.85 ≥ 0.85 ≥ 0.85
Fitting Dimenssions in MM 80 * 80 * 20 mm 120 * 120 * 20 mm 170 * 170 * 20 mm 225 * 225 * 20 mm Φ 80 * 20 mm Φ 120 * 20 mm Φ 172 * 20 mm Φ 225 * 20 mm
Cutting Size in MM 60 * 60 mm 100 * 100 mm 152 * 152 mm 205 * 205 mm Φ 60 mm Φ 100 mm Φ 152 mm Φ 205 mm
Color Temperature WH/WW WH/WW WH/WW WH/WW WH/WW WH/WW WH/WW WH/WW

NOTE: WH = Cool white 6000K, WW = Warm white 3000 K, NW = Natural white 4000 K
All fixtures are including drivers (Constant current, non dimmable)

Due to constant upgrades company reserves the right to change the models / size / specification, etc without prior notice.
