LED Lighting System : LED Panel Downlight - Recessed



Features & Technical Specifications

  • 88% energy saving
  • Instant start
  • No flicking
  • No humming
  • No RF interference

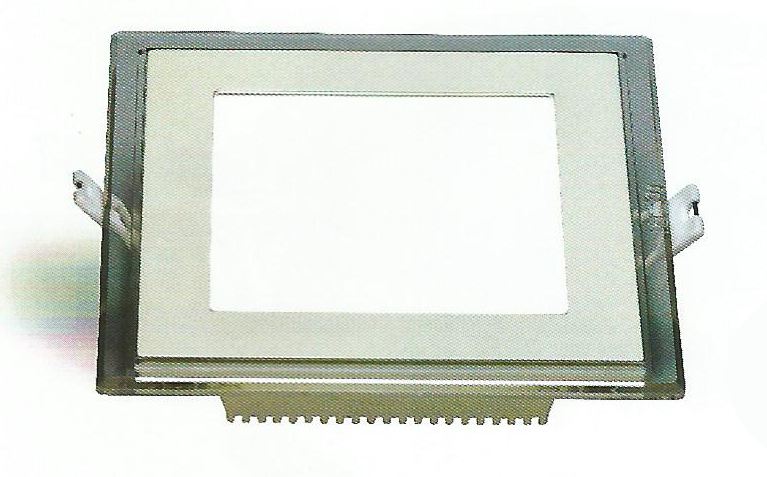

Model →
Points ↓		 ADPS - 6W ADPS - 12W ADPS - 18W ADPR - 6W ADPR - 12W ADPR - 18W
Watt 6 W 12 W 18 W 6 W 12 W 18 W
Input Voltage AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz
Lumen 660 LM 1320 LM 1980 LM 660 LM 1320 LM 1980 LM
CRI ≥ 80 ≥ 80 ≥ 80 ≥ 80 ≥ 80 ≥ 80
Body Material Aluminium Aluminium Aluminium Aluminium Aluminium Aluminium
Operating Temperature in Celsius < 45° C < 45° C < 45° C < 45° C < 45° C < 45° C
Light Angle in Deg 72 ° 75 ° 75 ° 72 ° 75 ° 75 °
Led Life (Hours) 40000 HR 40000 HR 40000 HR 40000 HR 40000 HR 40000 HR
Driver Efficiency ≥ 0.85 ≥ 0.85 ≥ 0.85 ≥ 0.85 ≥ 0.85 ≥ 0.85
Fitting Dimenssions in MM 106 * 106 * 35 mm 145 * 145 * 42 mm 190 * 190 * 52 mm Φ 106 * 35 mm Φ 145 * 42 mm Φ 190 * 54 mm
Cutting Size in MM 85 mm * 85 mm 110 mm * 110 mm 160 mm * 160 mm Φ 85 mm Φ 110 mm Φ 160 mm
Color Temperature WH/WW WH/WW WH/WW WH/WW WH/WW WH/WW

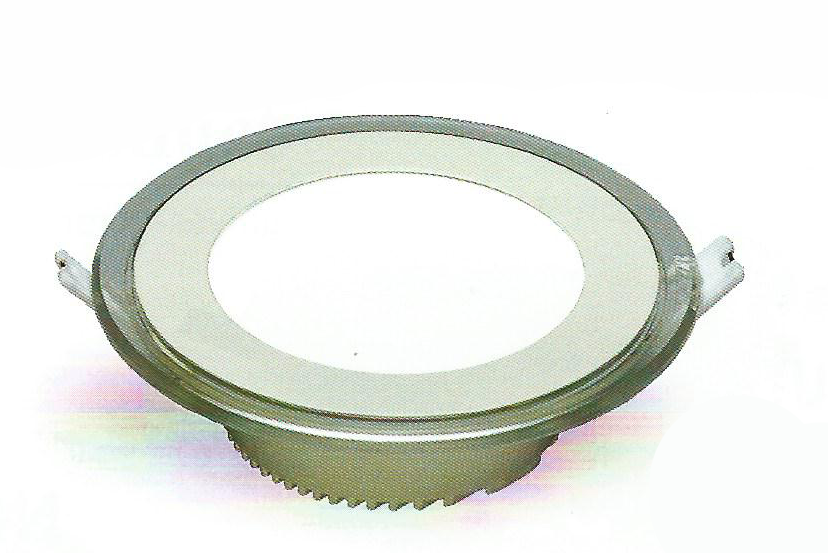

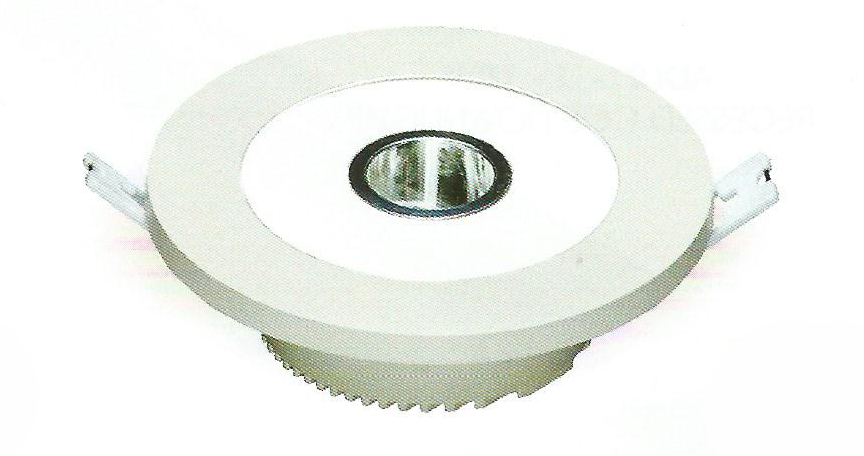

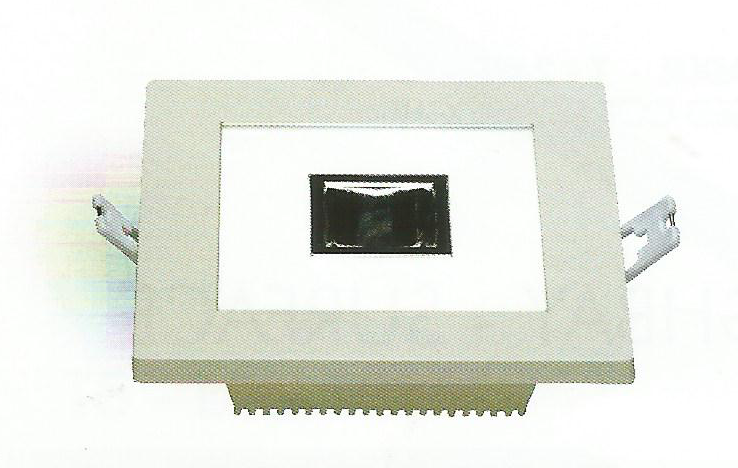

Model →
Points ↓		 ADAS - 10W ADAS - 15W ADAS - 20W ADAR - 10W ADAR - 15W ADAR - 20W
Watt 10 W 15 W 20 W 10 W 15 W 20 W
Input Voltage AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz AC 100-240 V / 50-60 Hz
Lumen 1100 LM 1650 LM 2200 LM 1100 LM 1650 LM 2200 LM
CRI ≥ 80 ≥ 80 ≥ 80 ≥ 80 ≥ 80 ≥ 80
Body Material Aluminium Aluminium Aluminium Aluminium Aluminium Aluminium
Operating Temperature in Celsius < 45° C < 45° C < 45° C < 45° C < 45° C < 45° C
Light Angle in Deg 75 ° 75 ° 75 ° 75 ° 75 ° 75 °
Led Life (Hours) 40000 HR 40000 HR 40000 HR 40000 HR 40000 HR 40000 HR
Driver Efficiency ≥ 0.85 ≥ 0.85 ≥ 0.85 ≥ 0.85 ≥ 0.85 ≥ 0.85
Fitting Dimenssions in MM 120 * 120 * 40 mm 140 * 140 * 50 mm 185 * 185 * 50 mm Φ 120 * 40 mm Φ 135 * 40 mm Φ 185 * 50 mm
Cutting Size in MM 100 mm * 100 mm 120 mm * 120 mm 160 mm * 160 mm Φ 100 mm Φ 120 mm Φ 160 mm
Color Temperature WH/WW WH/WW WH/WW WH/WW WH/WW WH/WW

NOTE: WH = Cool white 6000K, WW = Warm white 3000 K, NW = Natural white 4000 K
All fixtures are including drivers (Constant current, non dimmable)

Due to constant upgrades company reserves the right to change the models / size / specification, etc without prior notice.
