| Model → Points ↓ |

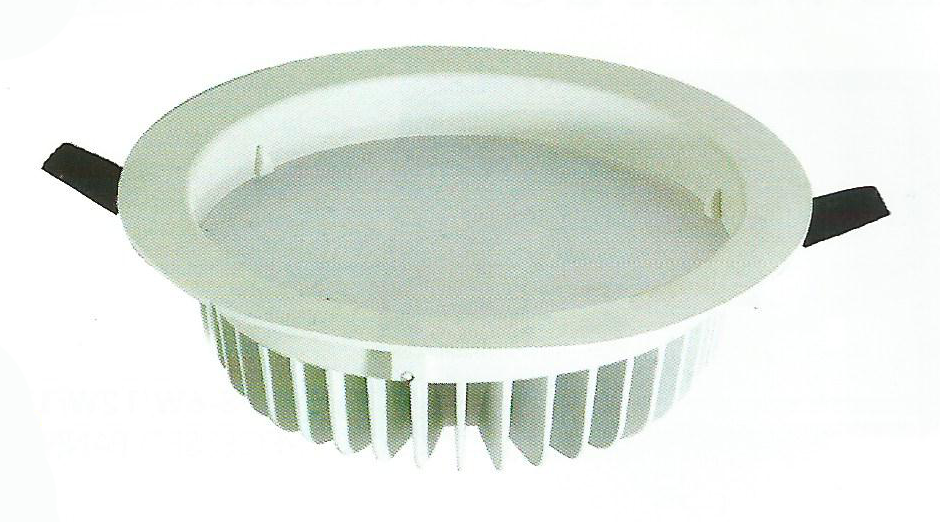

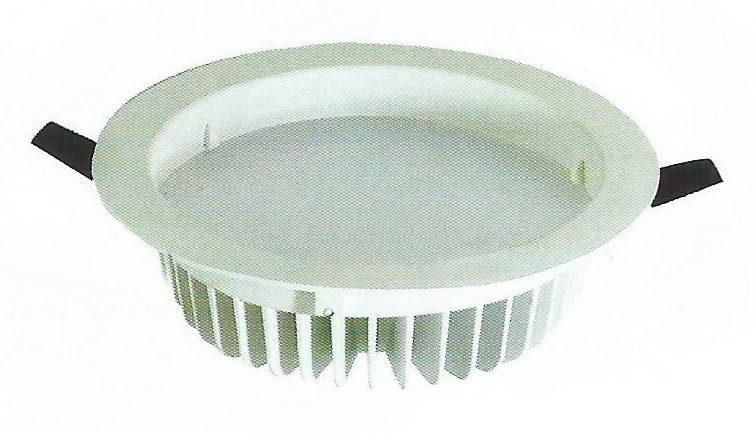

ADLR - T18 | ADLR - T24 |
|---|---|---|
| Watt | 18 W | 24 W |
| Input Voltage | AC 100-240 V / 50-60 Hz | AC 100-240 V / 50-60 Hz |
| Lumen | 1600-1800 LM | 2100-2400 LM |
| CRI | ≥ 85 | ≥ 85 |
| Body Material | Aluminium | Aluminium |
| Operating Temperature in Celsius | < 45° C | < 45° C |
| Light Angle in Deg | 120 ° | 120 ° |
| Led Life (Hours) | 50000 HR | 50000 HR |
| Driver Efficiency | ≥ 0.90 | ≥ 0.90 |
| Fitting Dimenssions in MM | Φ 180 mm | Φ 230 mm |
| Cutting Size in MM | Φ 160 mm | Φ 195 mm |
| Color Temperature | WH | WH |
NOTE: WH = Cool white 6000K, WW = Warm white 3000 K, NW = Natural white 4000 K
All fixtures are including drivers (Constant current, non dimmable)
Due to constant upgrades company reserves the right to change the models / size / specification, etc without prior notice.
| Model → Points ↓ |

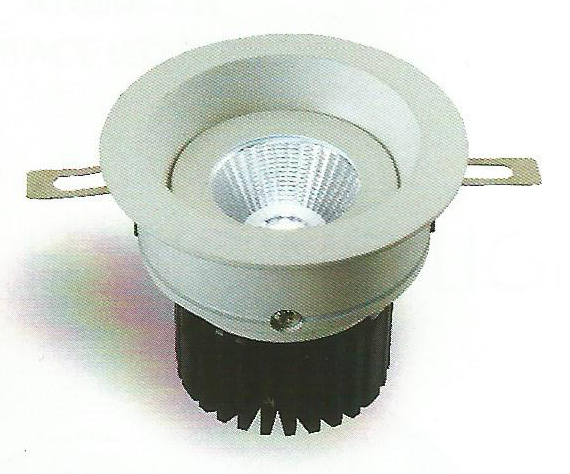

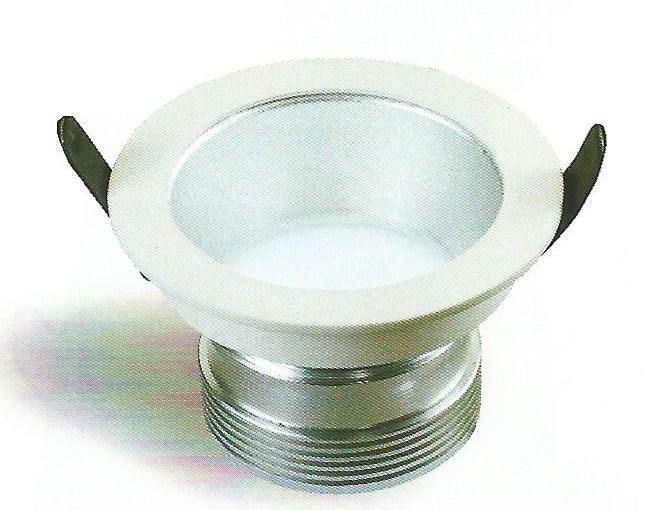

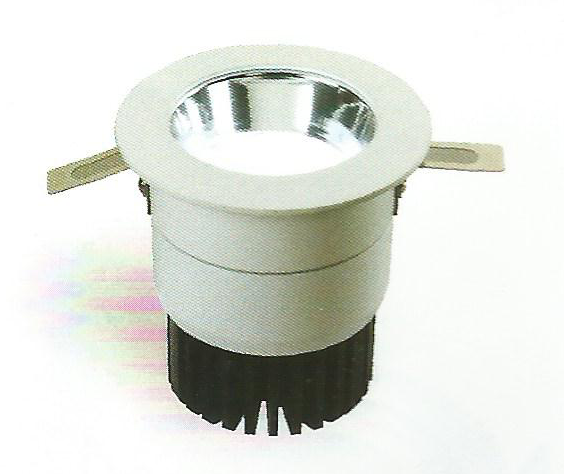

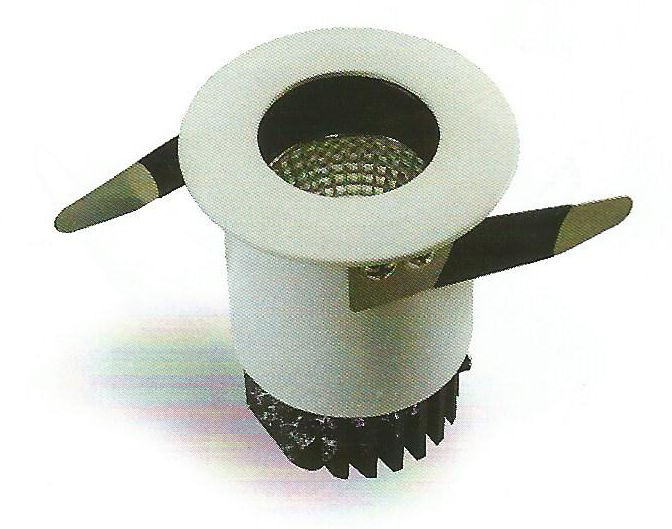

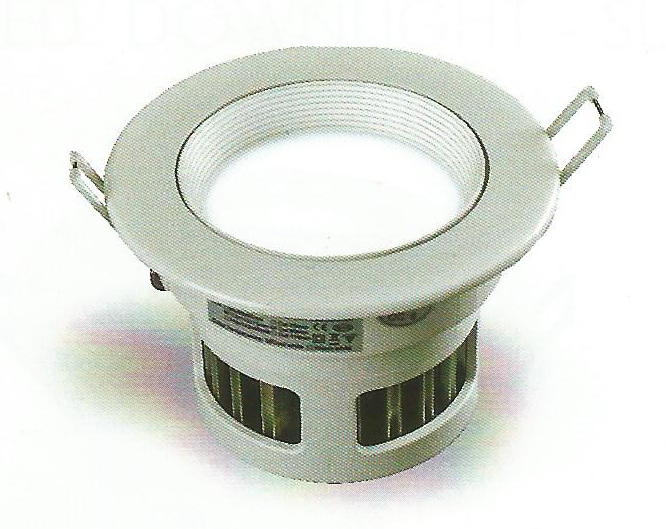

ACOB - J 5W | ACOB - J 9W | ACOB - J 12W | ACOB - SY 6W | ACOB - HWH 9W | ACOB - VF 6W | ACOB - VF 10W | ACOB - VZ 6W | ACOB - VZ 10W |
|---|---|---|---|---|---|---|---|---|---|
| Watt | 5 W | 9 W | 12 W | 6 W | 9 W | 6 W | 10 W | 6 W | 10 W |
| Input Voltage | AC 100-240 V / 50-60 Hz | AC 100-240 V / 50-60 Hz | AC 100-240 V / 50-60 Hz | AC 100-240 V / 50-60 Hz | AC 100-240 V / 50-60 Hz | AC 100-240 V / 50-60 Hz | AC 100-240 V / 50-60 Hz | AC 100-240 V / 50-60 Hz | AC 100-240 V / 50-60 Hz |
| Lumen | 460 LM | 830 LM | 1120 LM | 560 LM | 830 LM | 500 LM | 900 LM | 500 LM | 900 LM |
| CRI | ≥ 80 | ≥ 80 | ≥ 80 | ≥ 80 | ≥ 80 | ≥ 80 | ≥ 80 | ≥ 80 | ≥ 80 |
| Body Material | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| Operating Temperature in Celsius | < 45° C | < 45° C | < 45° C | < 45° C | < 45° C | < 45° C | < 45° C | < 45° C | < 45° C |
| Light Angle in Deg | 120 ° | 120 ° | 120 ° | 45 ° | 48 ° | 45 ° | 45 ° | 45 ° | 45 ° |
| Led Life (Hours) | 40000 HR | 40000 HR | 40000 HR | 40000 HR | 40000 HR | 40000 HR | 40000 HR | 40000 HR | 40000 HR |
| Driver Efficiency | ≥ 0.85 | ≥ 0.85 | ≥ 0.85 | ≥ 0.85 | ≥ 0.85 | ≥ 0.85 | ≥ 0.85 | ≥ 0.85 | ≥ 0.85 |
| Fitting Dimenssions in MM | Φ 90 * 55 mm | Φ 112 * 70 mm | Φ 143 * 85 mm | Φ 65 * 80 mm | Φ 120 * 74 mm | Φ 95 * 74 mm | Φ 95 * 85 mm | Φ 84 * 74 mm | Φ 84 * 90 mm |
| Cutting Size in MM | Φ 75 mm | Φ 95 mm | Φ 120 mm | Φ 50 mm | Φ 100 mm | Φ 80 mm | Φ 80 mm | Φ 65 mm | Φ 65 mm |
| Color Temperature | WH/WW | WH/WW | WH/WW | WH/WW | WH/WW | WH/WW | WH/WW | WH/WW | WH/WW |
NOTE: WH = Cool white 6000K, WW = Warm white 3000 K, NW = Natural white 4000 K
All fixtures are including drivers (Constant current, non dimmable)
Due to constant upgrades company reserves the right to change the models / size / specification, etc without prior notice.
